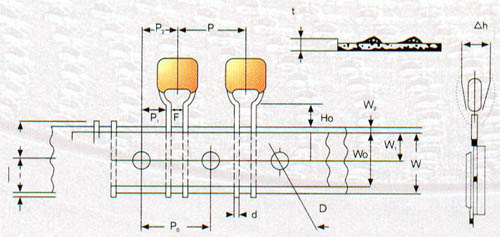

>> Packaging Style >> Ammo Package
| Code |
P |
P0 |
W |
W0 |
H2 |
W2 |
H1 |
D |
T |
△h |
H |
S |
P1 |
P2 |
△P |
| Dimension |
12.7 |
12.7 |
18 |
5 |
9 |
0 |
32.5 |
4 |
0.5 |
0 |
16-18 |
5 |
3.85 |
6.35 |
1.3 |
| Tolerance |
±1 |
±0.3 |
+1-0.5 |
min |
±0.5 |
1 |
Max |
±0.2 |
±0.2 |
±0.2 |
±0.5 |
±0.5 |
±0.7 |
±0.4 |
Max |
Reel Package
| A |
B(Max) |
C |
D(Max) |
E(Max) |
F |
| 355-365 |
50.8 |
38.10-46.02 |
102.01 |
86.36 |
25.40-30.48 |
|
Packaging Q'ty
|
| AmmoPackage |
Rell Package |
Bulk |
|
2500
|
4000 |
1000 |
 |
